Tag Archives: Field Day

AC1FX Field Day 2020

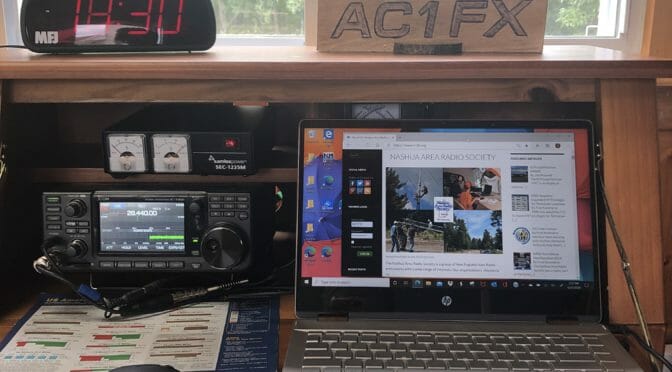

AC1FX Field Day – The Shack

My shack is more of a secretary desk of a shack-in- the-box. But it’s not the shack so much as the radio right. This is what I used for Field Day at AC1FX this year.

AC1FX Field Day

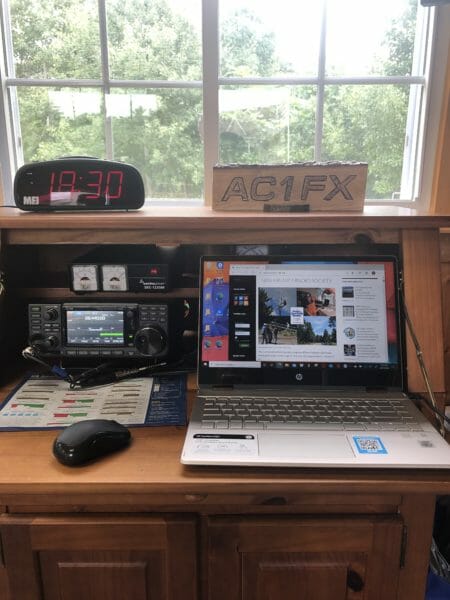

My Humble Shack

I have an Icom 7300 running 100W and I connected it to my laptop to log my contacts.

The Antenna

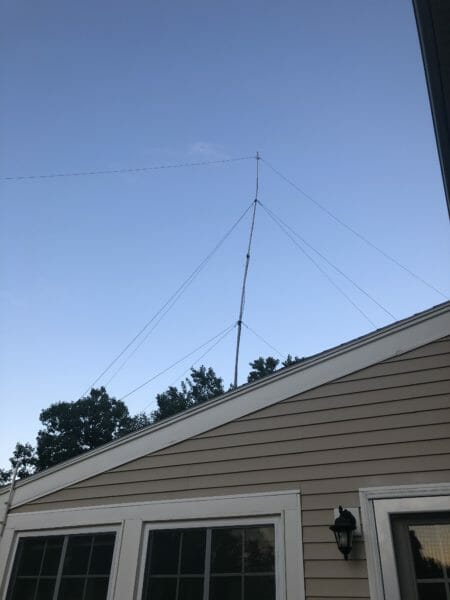

7 band OCF Dipole up 35 ft.

The Antenna

They say the antenna is the most important part of any setup. I’d go as far as maybe half along with the radio. My antenna is a 7 band Off Center Fed (OCF dipole). It’s only up 35 feet so it’s only a half-wave above the ground on 20M.

AC1FX Field Day - On the Air
AC1FX On the Air

Retrospect

I’m writing this after the fact so my hindsight is clearer. I had a great time this year.  Even though I think I made more contacts with the Club last year, being able to talk to other home class (1D) stations made up for it. I operated on in HF SSB mostly on 80 and 40 Saturday night and 10M on Sunday.  For me, 80 and 40 were open to Penn and New York, while Sunday 10M was more open to Ohio and Illinois. My original plan was to try to sit on a frequency and do a run. That seemed to work well for others but I found out they had higher power output and higher or more directional antennas. I sat on 28.460 around noon today and picked up 6 QSOs but they were relatively local. I then went on search and pounce and had so much fun seeing what was out there.  My most surprising contact was N3FJP of software fame. I didn’t have the heart to tell him I was using N1MM+ for my logger.

Improvements

Just a few things I would like to do for next time :

  • If I could get my dipole up to 66 ft it would at least be a ½ wave over the ground on 40M.
  • Maybe put up my old Cushcraft R8 vertical and see how that goes.
  • Practice CW more. It seems like they were having fun at the bottom of the bands but the fast pace of a contest and my lack of speed were incompatible.
  • Do more digital. Although for me this year talking to people did seem fun.

If you worked field day and are a NARS member don’t forget to add the full club name (Nashua Area Radio Society) in your entry.  See this link for details.

73,

Jeff, AC1FX

AC1EV Plans for 2020 Summer Field Day

AC1EV is operating 1E for Summer Field Day this year. I would have loved to operate in an ambitious club organized remote field day like we did last year, but Covid-19 social distancing requirements canceled that. I hoped to exercise my mobile setup and operate near saltwater, but again restrictions due to the virus made that difficult. I have a full house generator, so I will operate my home station on emergency power as class 1E. Here is how I am setup.

Power

17KW generator with 3 x 120-gallon propane tanks and Transfer switch

Power
Power

Antennas

K4KIO Hex Beam, 6 meters through 20 meters @33 feet and Alpha Delta 40/80 Dipole as an inverted V @ 45 feet.

Antennas
Antennas

AC1EV Field Day Station

Here is my shack in Tewksbury. I have an Icom IC-7300 with an Elecraft KPA500 amplifier along with an Elecraft KAT500 antenna tuner. Top that off with a Heil Pro 7 headset. The tuner allows me to select between the antennas. I have N1MM+ running on my laptop with two additional monitors leftover from my days as an IT Guru.

MA FD Shack - AC1EV Field Day
MA FD Shack

Jon, AC1EV

Field Day 2020 at W1AKI

Normally for the Nashua Area Radio Society, Field Day is a large, well-organized group activity of members, and many family members, setting up (and, later, taking down — safely!) at least a half a dozen stations, temporary towers with beam antennas, some interesting wire antennas, and our own emergency power grid. It’s a chance for members to try out transceivers and antennas and bands and modes that they may not have at their home QTH. It’s also a chance for members of the public to see what ham radio is all about and get an idea of what a temporary communications center hams can create in 24 hours in the event of a natural disaster or other emergency situation. So here’s what W1AKI Field Day plans are for 2020.

Life is What Happens When You’re Making Other Plans

This year, of course, things are different. They aren’t completely unprecedented — health care professionals and scientists have learned a lot from the 1918 Pandemic and, unfortunately, numerous others. But this is a new virus and a new disease, and the world is a much more crowded and interconnected place than it was over a century ago. Fortunately, we have technology undreamed of in 1918 to help science deal with the SARS-CoV-2 virus and the deadly COVID-19 disease it can cause.

So far, our modern, global communications infrastructure has held up well, and many people are very fortunate that they can continue working from home using the Internet and broadband communications channels. I’m extremely lucky that I’m one of them. And it’s not only the Internet, but technology like 3-D printing and small embedded computers have become additional tools that people have been able to make use of in this crisis.

Always Have a Backup Plan.  And a Plan C.  And Sometimes a D.  Maybe an E.

But what if that communications infrastructure does start to buckle under the load? As hams, and as members of the public, Field Day gives us a chance to think about how we would respond to that. And since we’re right in the middle of the pandemic ourselves, it forces us to look more closely at the changes we need to make to respond now. Does your “go kit” have a supply of face masks, hand sanitizer, and sterilizing wipes, not to mention soap and extra water for washing as well as drinking? Whether or not it did a year ago, I’m sure it does now!

So, this year, NARS won’t be setting up temporary towers in an idle athletic field. We won’t have a half dozen or more stations operating under the N1FD call sign with a small pool of gasoline-powered generators pushing our signals up to the ionosphere and back. We’ll be operating with our own call signs, from vehicles in isolated locations, from temporary stations set up by an individual or family member, or from our regular home stations.

Meanwhile, Back at W1AKI Field Day

I’ll be operating from home like so many others, with “100 watts and a wire” — an IC-7300 transceiver barefoot and an Alpha Delta 5 band fan dipole. (Okay, sorry, that’s more than “a” wire. And they’re mostly parallel, not in a wide fan. But it’s such a nice, traditional phrase. How can someone with a W1 call not love it? But I digress.) The 80m elements are extensions of the 40m elements with traps so that it is short enough to fit (just barely!) in my back yard.

My preparations so far have mostly included moving stuff around the shack so I can operate more comfortably, and updating the applications I use Firefox, N1MM Logger+, the DXLab suite, and DXLab’s various databases.

I won’t be using emergency power because I know that my generator works well (we have a few power outages here each year that give us a chance to test it; fortunately, power usually comes back in less than a half a day) and I’m willing to sacrifice the points to save fuel. (I’ll just have to make, what, 100 more contacts to make up for it? Oh, well, it is good practice.)

I’ve dug out some em-comm information and started refreshing my memory on message traffic procedures, that’s one thing I haven’t gotten to do before at Field Day. If I’m lucky, I’ll have time to finish tuning my antenna Saturday morning. My stretch goal is to get my son (an entomologist and microbiologist) on the air, but we’ll just have to wait and see how that goes.

It’s time to go double-check what the exchange is and get some rest.  I hope to see you on the air. 73 and take care of yourselves!

Aron, W1AKI
