80m Broadband Matching System Design and Construction

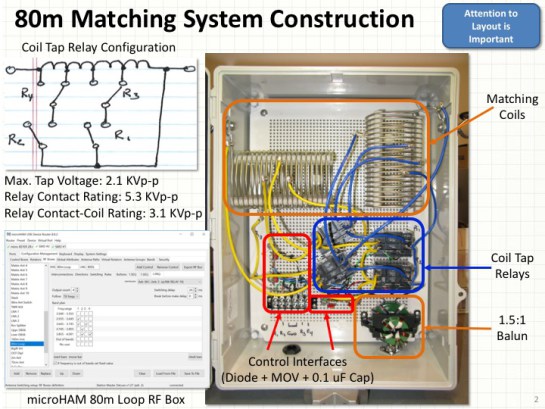

We installed a 75m loop for SSB operation on our tower when we built it. The loop is full size and is diamond shaped so that our lower SteppIR DB36 yagi can rotate inside of it. The loop is fed at the bottom corner about 20 ft up from the ground. It works great for SSB operation on 75m but we have often wished we could use it across the entire 80m band. This goal led to a project to create a matching system for the antenna. The idea was to use a set of loading coils in series at the feed point create a good match in all segments of the 80m band…

Link to the Full Article: An 80m Broadband Matching System | Our HAM Station

We shared this project at our project night meeting in January. I recently published an article explaining the design and construction of an 80m Broadband Matching System. The ideas used can be applied to many other matching system arrangements for many different types of low-band antennas.
