Our High-Altitude Balloon at the Edge of Space (GoPro Capture)

HAB-2 Launch This Saturday – How To Track Our High-Altitude Balloon

We are planning the second launch of our High-Altitude Balloon (HAB-2) this Saturday, October 28th at approximately 11 am ET.

You can view the story of our first launch here on our website and you can view the video from our first High-Altitude Balloon launch above.

High-Altitude Balloon Launch Site and Weather

The weather and Jetstream conditions look good for our HAB-2 launch!

High-Altitude Balloon 2 Launch Site in Winchester NH
HAB-2 Launch Site in Winchester NH

We will be launching from the school in Winchester, NH at around 11 am ET. Nashua Area Radio Society members and friends are invited to join us for our launch.

High-Altitude Balloon 1 Launch!
HAB-1 Launch!

We have been working with the STEM club at Bishop-Guertin HS here in Nashua, NH. The students will handle HAB-2 launch preparations and the launch. Launch preparations will begin on site at 9:30 am ET.

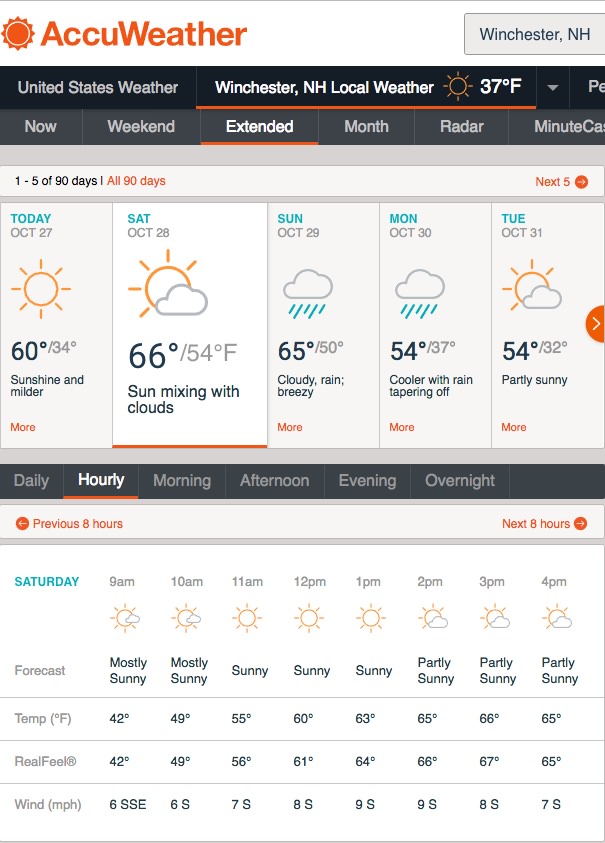

WInchester NH Weather Forecast for Launch
Winchester NH Weather Forecast for Launch

The weather forecast looks great for our launch on Saturday with clear skies and moderate winds. These conditions should enable us to capture some spectacular video from HAB-2 during its flight!

Tracking HAB-2

I wanted to share some information about tracking our HAB-2 as it flies. Our balloon will carry’s a GPS receiver and a 2m APRS Transmitter.

High-Altitude Balloon Flight Platform
HAB Flight Platform

The onboard APRS transmitter will operate on the Amateur Radio standard terrestrial APRS frequency of 144.390 MHz and will transmit our HAB’s position, heading, speed, altitude and other telemetry data every minute during HAB-2’s flight. The transmitter is battery-powered and generates a 250 mW signal into a dipole antenna suspended from HAB’-2s flight platform. HAB-2 will use N1FD-11 as its call sign.

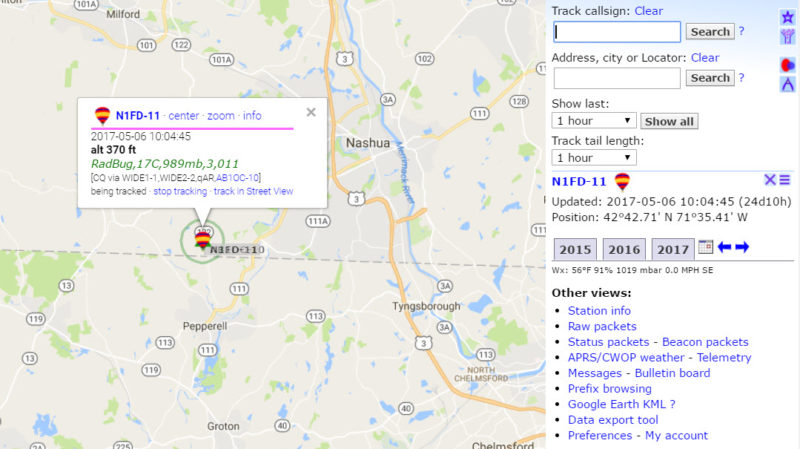

High-Altitude Balloon On Aprs.fi
HAB-2 On Aprs.fi

HAB-2’s APRS packets will be picked up by ground-based Digipeaters and iGates and will be relayed to aprs.fi where the HAB’s current location and flight path can be tracked.  You can click on the link in the previous line to see HAB-2’s current location and flight track.

High-Altitude Balloon 2 Flight Path Projection
HAB-2 Flight Path Projection

Based upon online HAB flight prediction calculators that we have been using, we expect the HAB’s flight to last a little more than 2 1/2 hours. The HAB should reach an altitude of over 105,000 ft before the balloon bursts and the parachute on the flight platform brings HAB-2 back to the ground at a safe speed. The above predictions will likely somewhat different from HAB-2’s actual flight path. Based upon the predictions, HAB-2 will be traveling approximately 100 km between its takeoff point and landing near Maine.

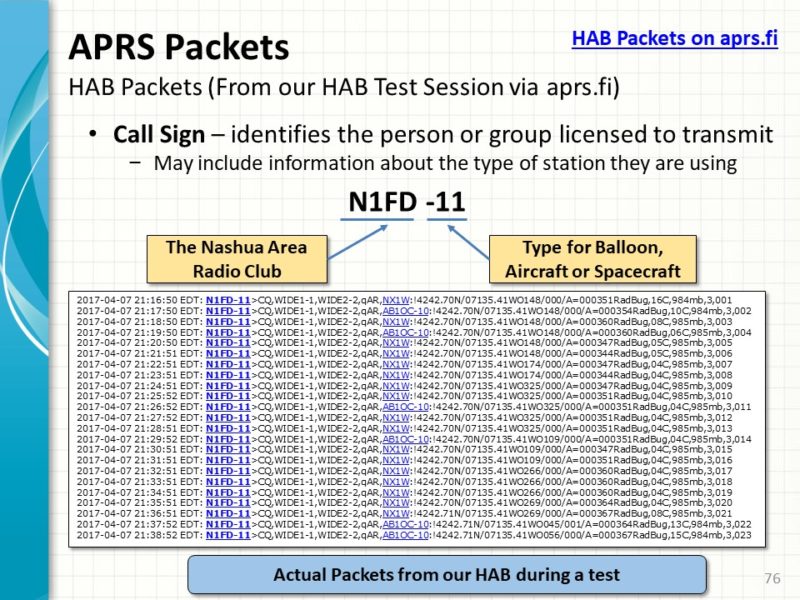

High-Altitude Balloon APRS Packet Information
HAB APRS Packet Information

Aprs.fi will store and display a copy of all of the APRS AX.25 packets transmitted by HAB-2 during its flight. Of particular interest to the STEM element of the flight will be the Balloon’s data on atmospheric temperature and pressure conditions at different altitudes.

All you need to track HAB-2 during its flight is Internet access and a web browser. Just click on one of the aprs.fi links here to see HAB-2’s current location and altitude. If you have an APRS ground station, you may also be able to receive HAB-2’s telemetry directly during the flight.

We will post updates on launch plans and the flight in the Youth Forum on our website.

T minus 1 day and counting until HAB-2 launches….

We have launched! Your can Track HAB-2 on apris.fi using the call sign N1FD-11.



Fred, AB1OC

If you have found a spelling error, please, notify us by selecting that text and pressing Ctrl+Enter.

Follow or Contact Us:

One thought on “HAB-2 Launch This Saturday – How To Track Our High-Altitude Balloon”

  1. I heard back from the HAB recovery team. HAB took a bit of a water landing around a couple of ponds near Saco/ Old Orchard Beach, Maine, area. Might be Lyman, ME. I think they mentioned you can see the parachute on one of island beaches. Jamey (KC1ENX) is breaking out the kayak to recover.
