The New IC-7610 Direct-Sampling SDR HF/6m Transceiver

Icom IC-7610 Display Screen
Icom IC-7610 Display Screen

Source: The new IC-7610 Direct-Sampling SDR HF/6m Transceiver

The new IC-7610 Transceiver is the much-anticipated dual-receive version which uses Icom’s SDR platform that was first available in the IC-7300. The source page has some useful photos and a block diagram of the receiver.

The addition of Icon’s Digitial Preselector functionality is a welcome enhancement over the IC-7300. The Digi-Selector should be useful in multi-radio and other high-interference environments.

Icom IC-7610 External Display
Icom IC-7610 External Display

The new radio will also have a connection to an external display. This is a great addition as it makes the excellent panadapter capability in Icom’s SDR platform much easier to view and use.

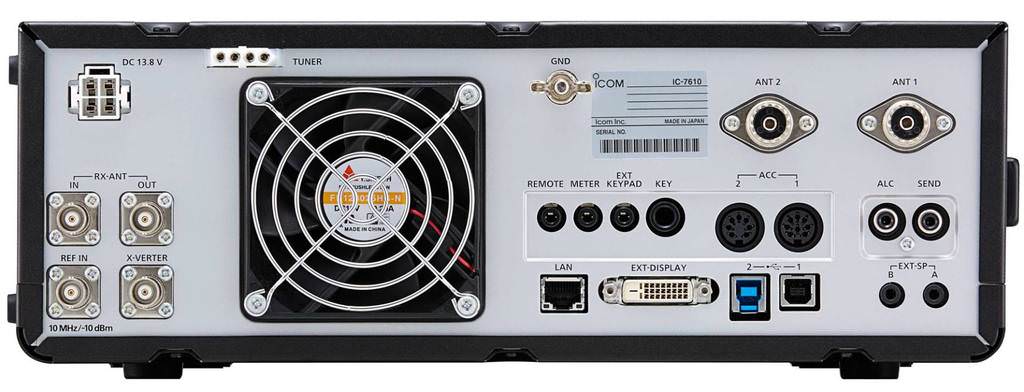

Icom IC-7160 Rear Panel
Icom IC-7160 Rear Panel

The rear panel includes connectors for two antennas. There are BNC jacks for connection of a separate receive antenna and/or a Transverter.  Also included is an Ethernet interface for remote control and USB interfaces for connection to a local computer.

You can see more about this new Transceiver on Icom’s page.
