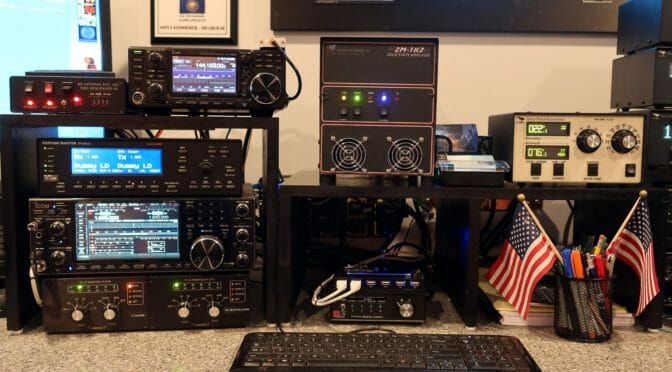

AB1OC EME Station Hardware Components

EME Station 2.0 Part 11 – EME Station Hardware In Shack

Now that our 2m EME Antenna Array is fully installed, we have turned our attention to the set up the EME Station Hardware in our Shack. Our plan is to do a mix of JT65 Digital and CW operation with our 2m EME…

Source: EME Station 2.0 Part 11 – Station Hardware In Shack

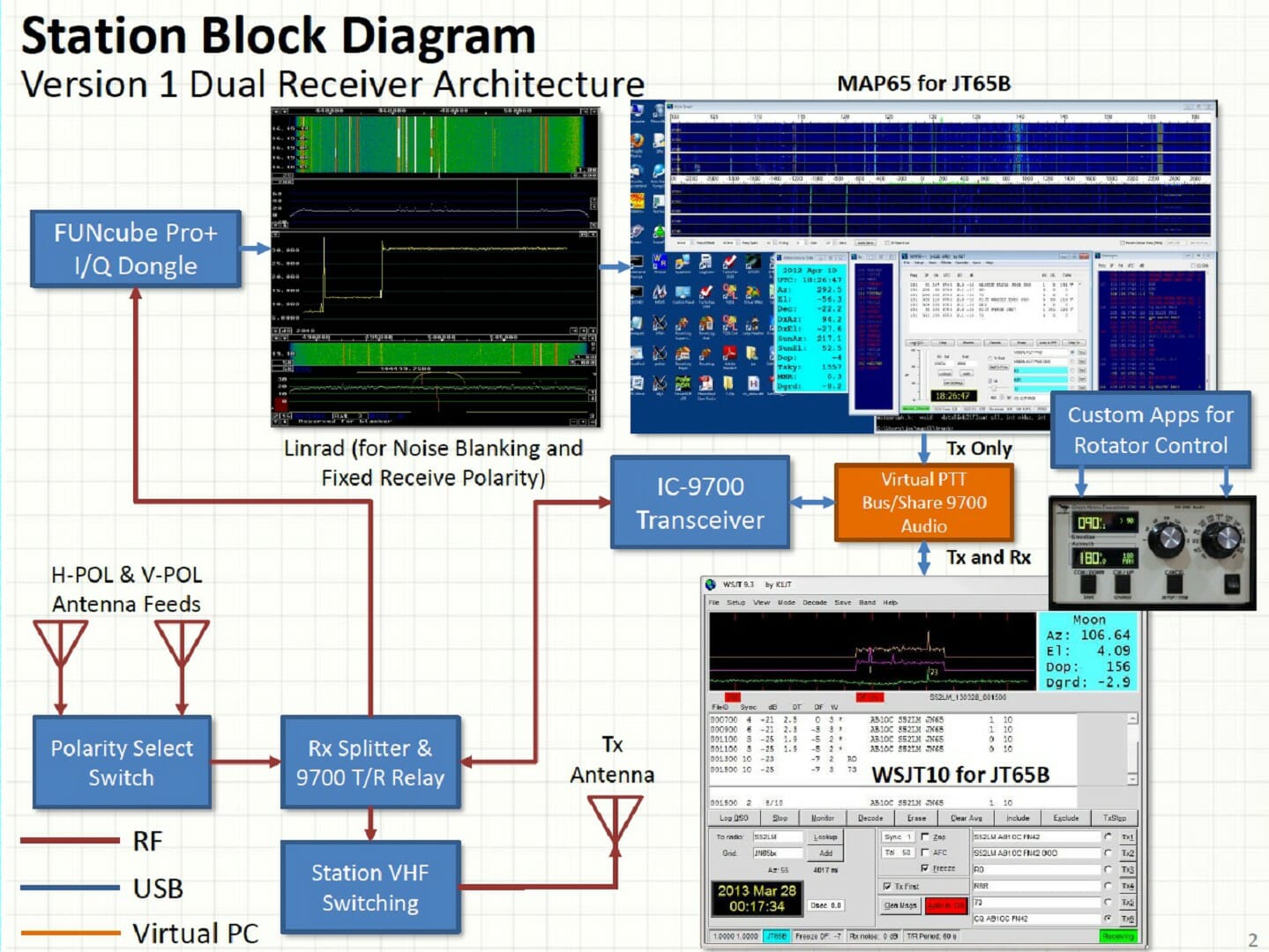

EME Station Block Diagram - Phase 1
AB1OC-AB1QB 2m EME Station Block Diagram – Phase 1

We’ve created a Phase I Architecture that uses an SDR Dongle and manual selection of Receive Polarity via a switch. We also added a receive splitter and a Transmit/Receive relay in front of an Icom IC-9700 Transceiver which is dedicated to our EME setup to enable both the MAP65 and WSJT10 Software Decoders to operate simultaneously.

This approach has some significant advantages when conditions are poor as one of either MAP65 or WSJT10 will often decode a marginal signal when the other will not.

Special Transmit/Receive hardware was created and added to the sequencing system in our EME station to permit the simultaneous operation of two separate receivers and software decoders for JT65.

The article also covers the installation of a Reference Locking Board in the IC-9700 which allows the IC-9700 to be frequency locked to a clock derived from GPS Satellites.

You can read all about the setup of our EME Station Hardware via the link above.

Fred, AB1OC
